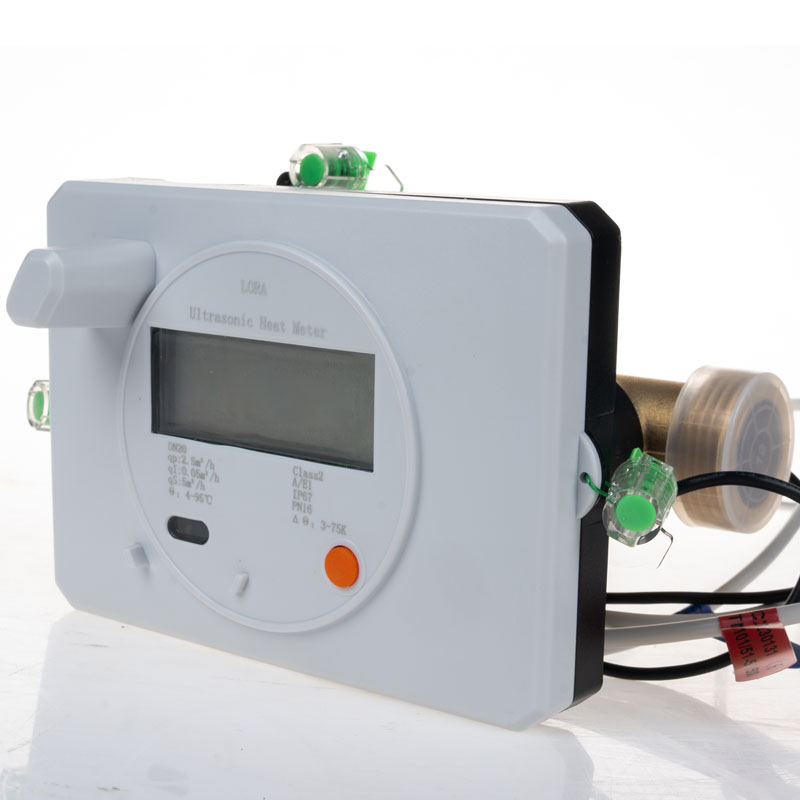

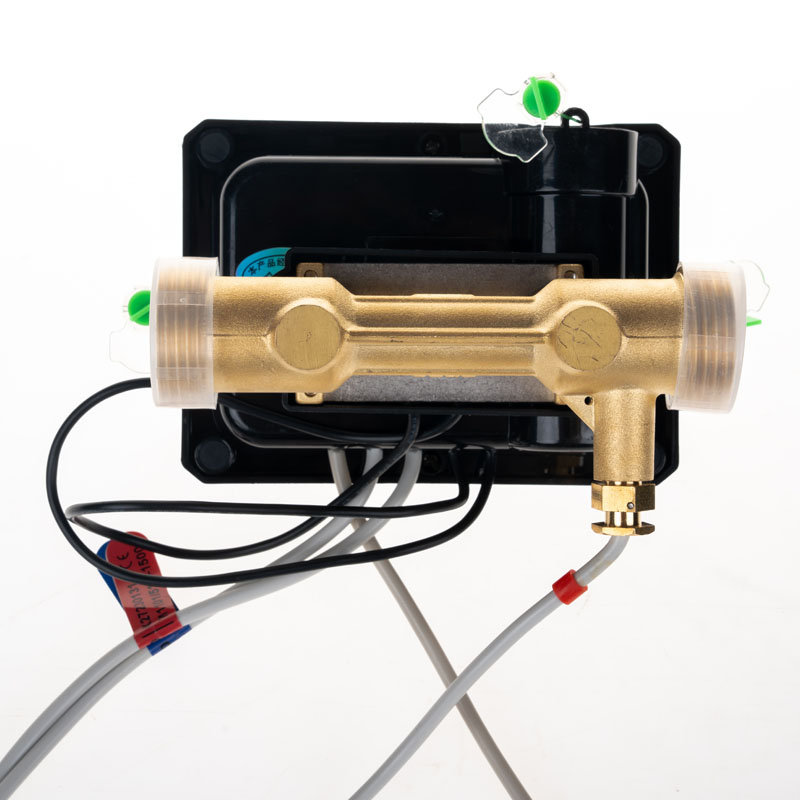

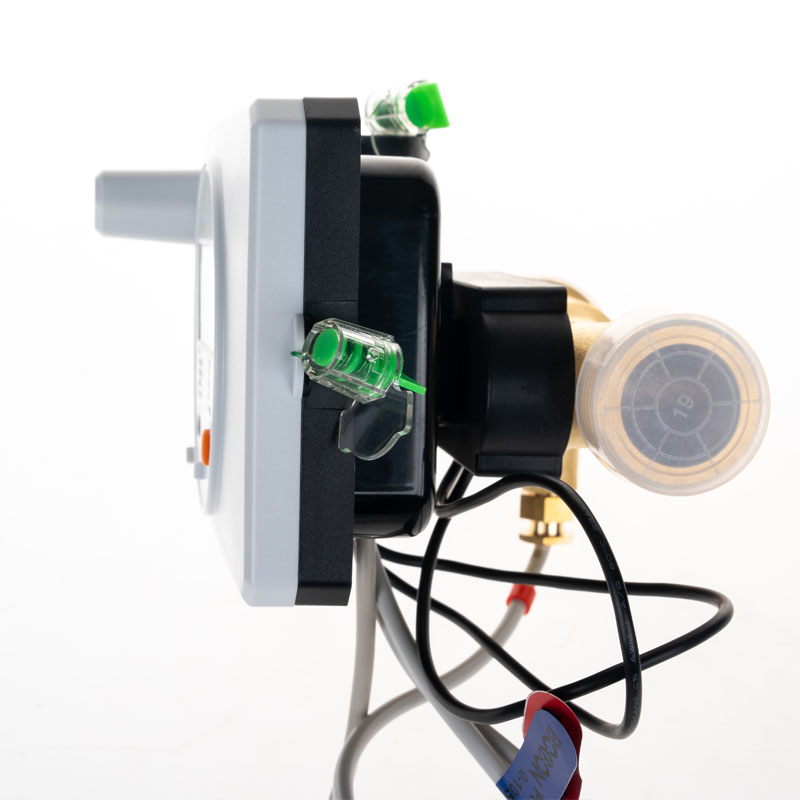

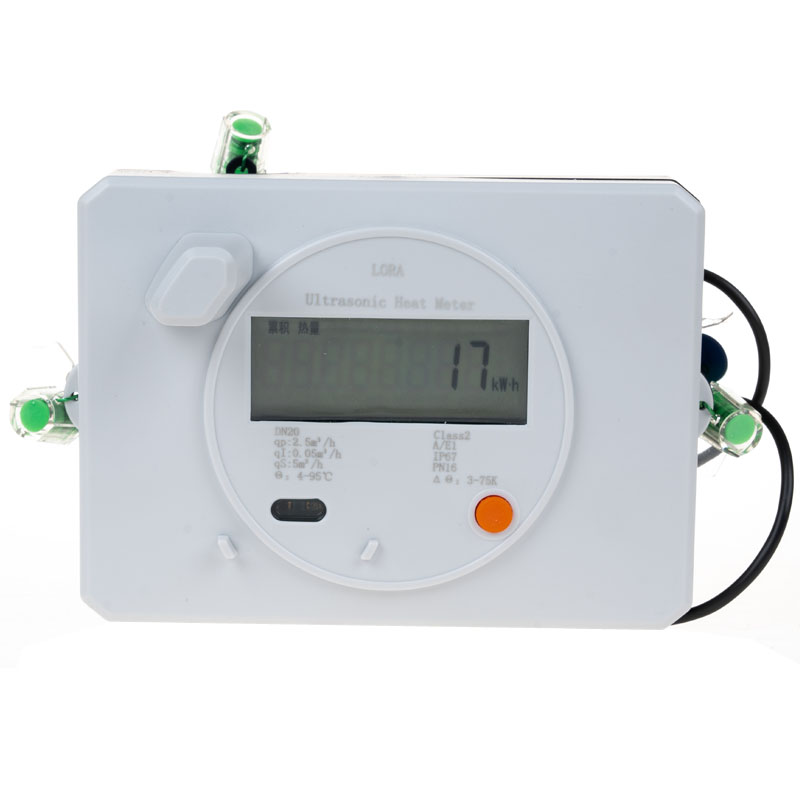

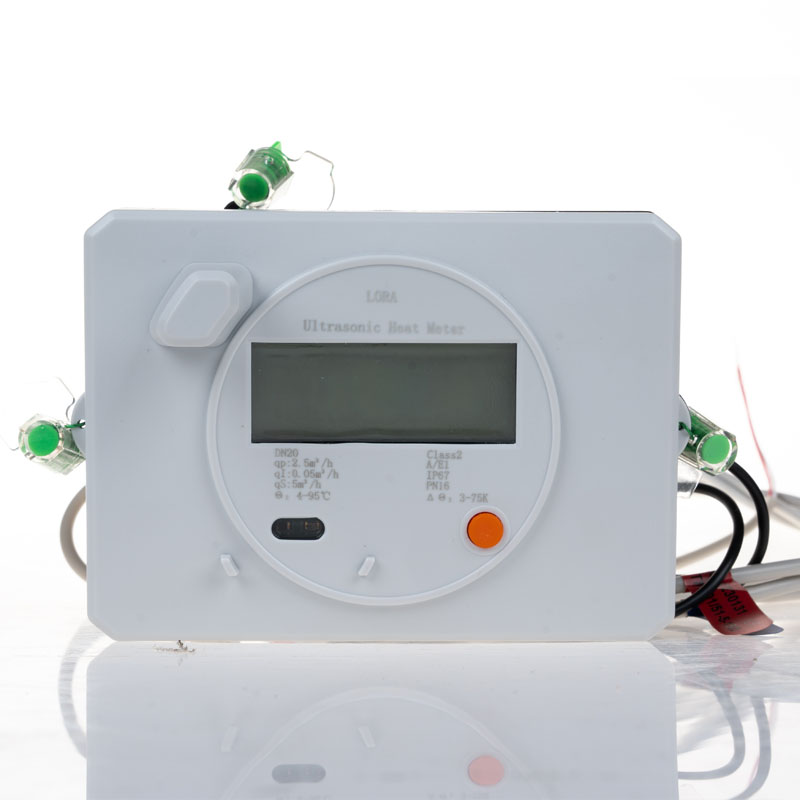

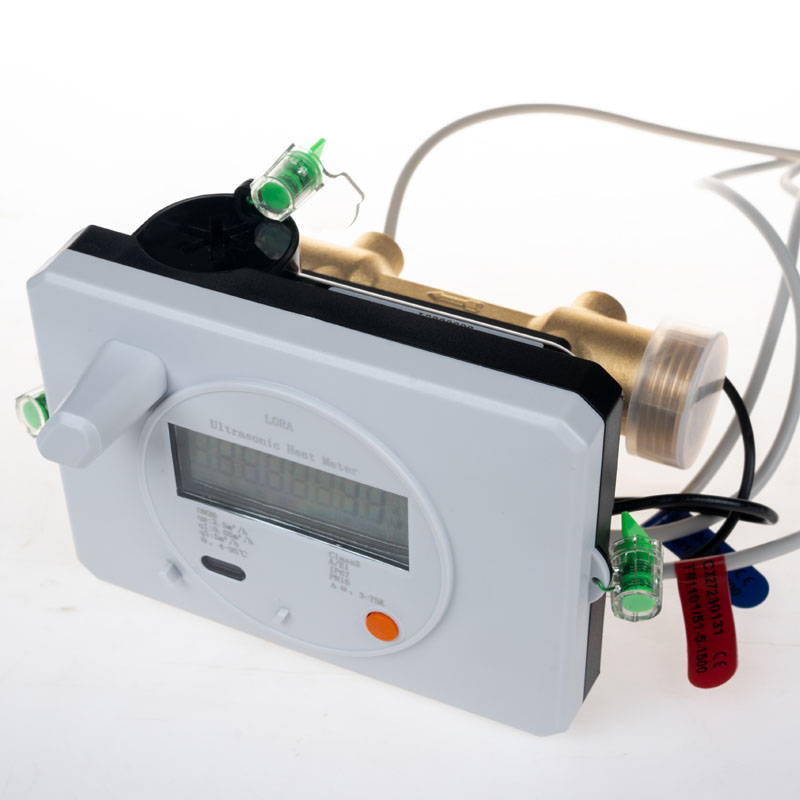

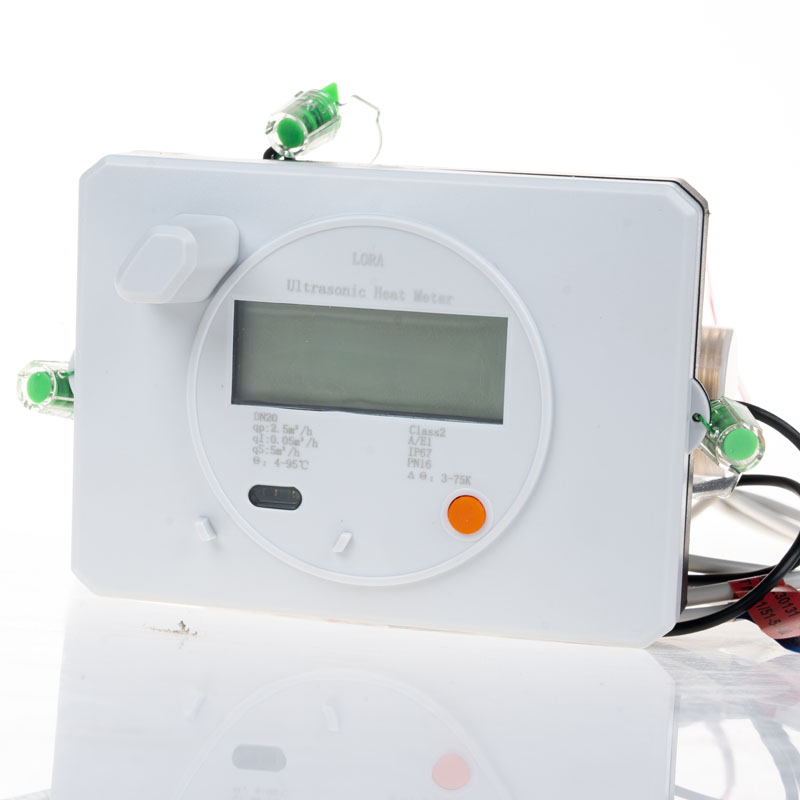

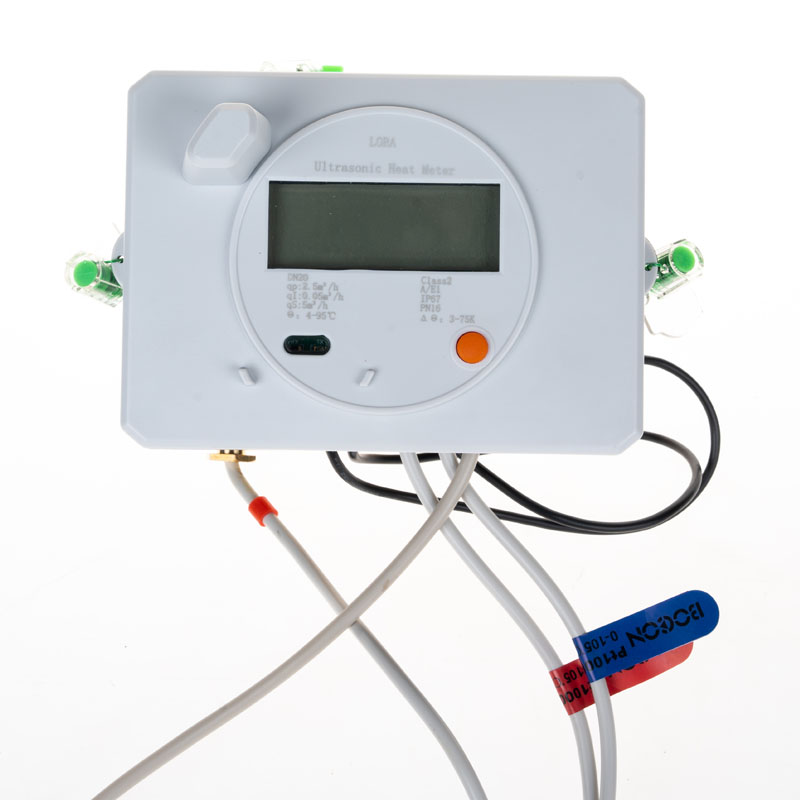

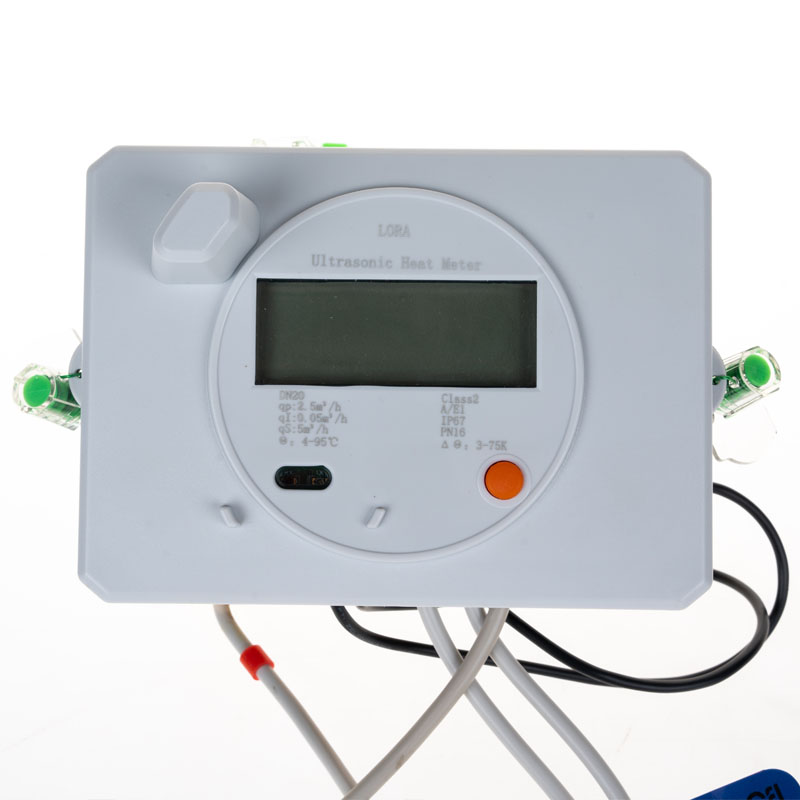

Xinkong is a professional Thermal Energy Meter for Heatting and Cooling System manufacturer and supplier with many years of experience. Thermal Energy Meter for Heatting and Cooling System can meet many applications, If you are interested in our quality services, you can consult us now, and we will get back to you promptly.ultrasonic heat meter is a type of flow meter used to measure the thermal energy of a liquid or steam. It utilizes ultrasonic technology to measure the velocity of the fluid, and then calculates the heat energy based on the temperature difference between the inlet and outlet. ultrasonic heat meter has a wide range of applications in district heating and cooling, industrial production, and energy management. It is an essential tool for accurate energy measurement and efficient energy utilization.
Xinkong is a Thermal Energy Meter for Heatting and Cooling System manufacturer and supplier, well-known for quality service. Wenzhou Xinkong Import & Export Co., Ltd. is an innovative enterprise integrating scientific research, production and sales. The company's sales network covers many countries and regions such as Europe and Southeast Asia, and its product quality and service are well received by customers. You can rest assured to buy Thermal Energy Meter for Heatting and Cooling System from us.
Accurate Measurement
Uses picosecond high-precision chips for high measurement accuracy and low starting flow, and adopts high-precision platinum resistance for accurate temperature measurement.
Payment Modes
Embedded with 5-level tiered pricing, supports platform prepayment, on-device prepayment, mixed payment and other payment methods.
Data Storage
Has hourly, daily, monthly and other cycle data, including accumulated heat, accumulated cold, accumulated flow, working time and other data. Data can be stored for a long time after power off.
Intelligent Monitoring
Real-time sound distance measurement, transducer anomaly detection, battery low voltage alarm, empty pipe alarm, temperature alarm, etc.
Ultra-Low Power Consumption
Uses low power consumption design, built-in large-capacity battery, battery life exceeds 6 years.
Multi-Angle Installation
Can be installed horizontally or vertically, and can be installed on the inlet or return pipe according to user needs.
Technical Support
Can be protocol docked and interface docked, meeting different platform usage requirements.
OTA Remote Upgrade
No need to replace, disassemble, or get close to the device. All devices support remote online upgrades.
Convenient Payment
Supports mobile payment such as WeChat official account, Alipay, mini-programs, and queries usage, balance, payment, and other information.
Nominal Diameter |
15 |
20 |
25 |
32 |
40 |
|
Dimension |
L |
110 |
130 |
160 |
180 |
200 |
W |
87 |
87 |
87 |
85 |
85 |
|
H |
1011 |
101 |
101 |
125 |
130 |
|
Max flow (m3/h) |
3 |
5 |
7 |
12 |
20 |
|
Norm flow(m3/h) |
1.5 |
2.5 |
3.5 |
6 |
10 |
|
Min flow(m3/h) |
0.03 |
0.05 |
0.07 |
0.12 |
0.2 |
|
Max flow reading |
999999.99(m3) |
|||||
Max heat reading |
99999999(KW·h) |
|||||
Power supply |
3.6VDC |
|||||
Battery life |
>6 years ( Lithium battery) |
|||||
Accuracy class |
Class 2 |
|||||
Communication mode |
Infrared interface , NB-IoT/LoRa/M-Bus/RS-485 |
|||||
Press loss |
≤ 0.025 Mpa ( under normal flow) |
|||||
IP class |
IP 68 |
|||||
Temperature range |
(0--95) ℃ |
|||||
Temperature difference range |
(3--60) k |
|||||
Starting temperature difference |
0.01k |
|||||
Temperature sensor |
Pt 1000 |
|||||
Ambient temperature |
+5℃ -- +55℃ |
|||||
Ambient level |
Level A |
|||||
Installation |
Horizontal/ vertical installation |
|||||
Monitor |
8 digits |
|||||
Length of temperature sensor |
1.5m |
|||||
Working current |
45uA |
|||||
Data storage |
Store historical data up to last 24 months |
