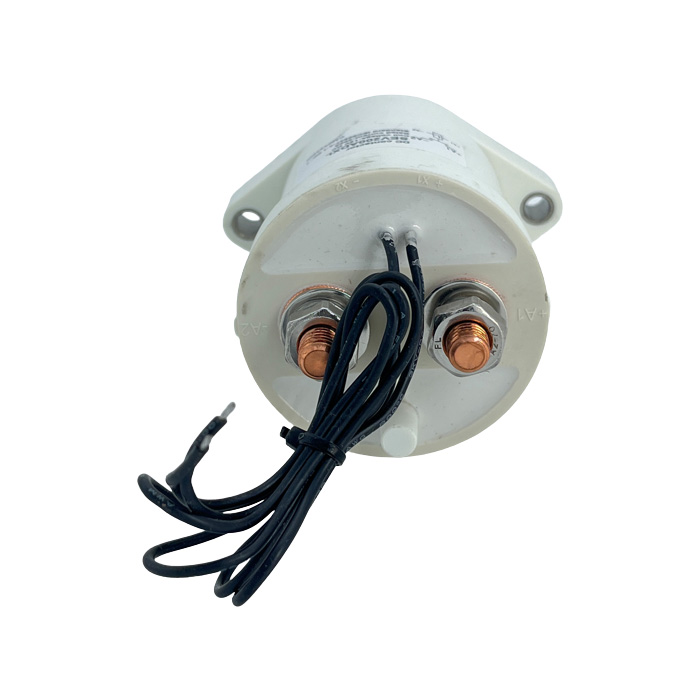

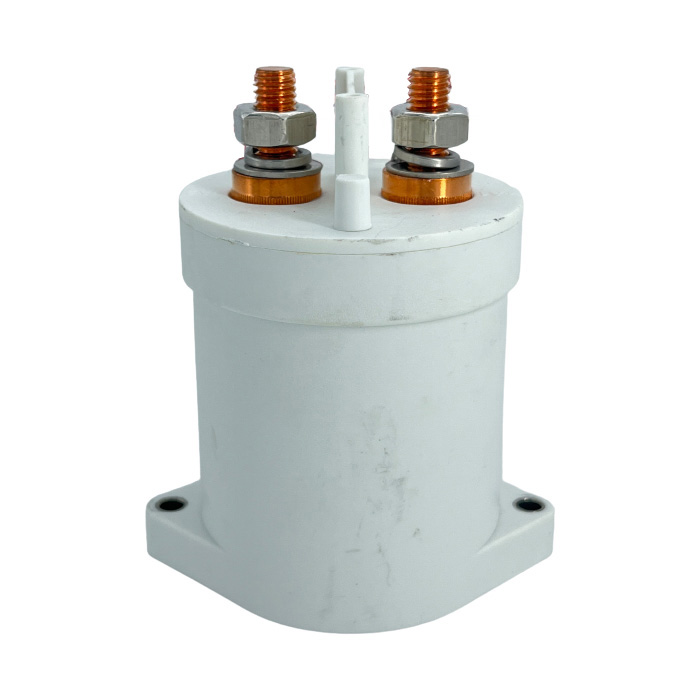

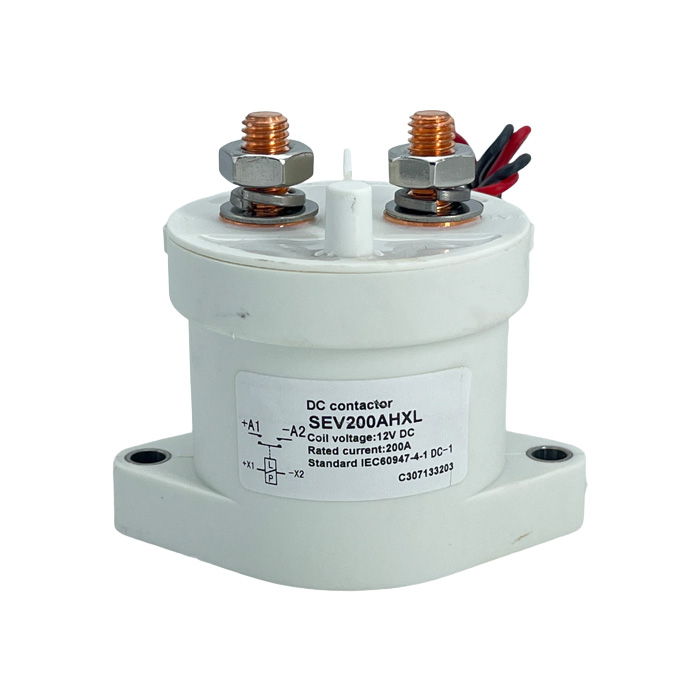

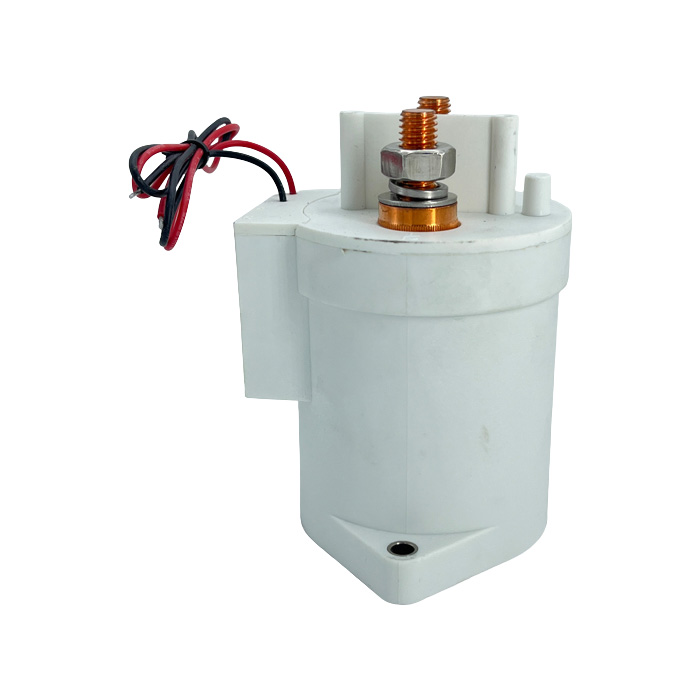

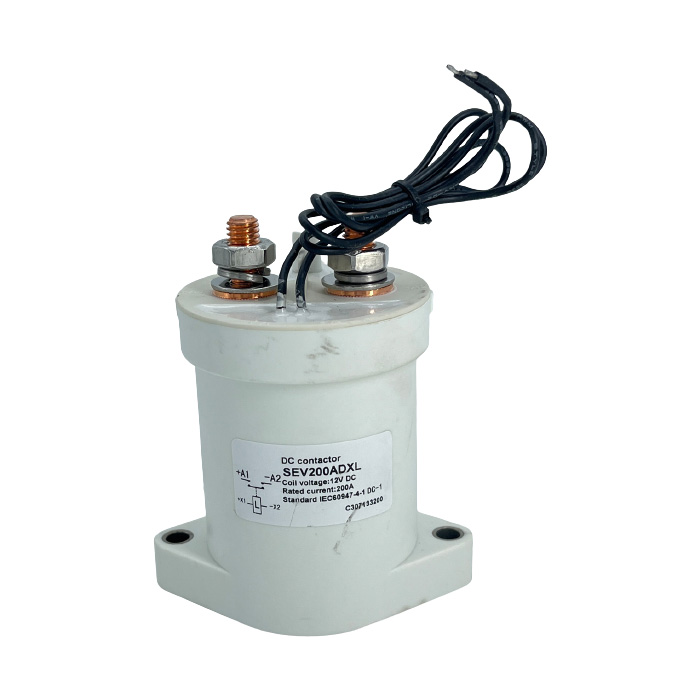

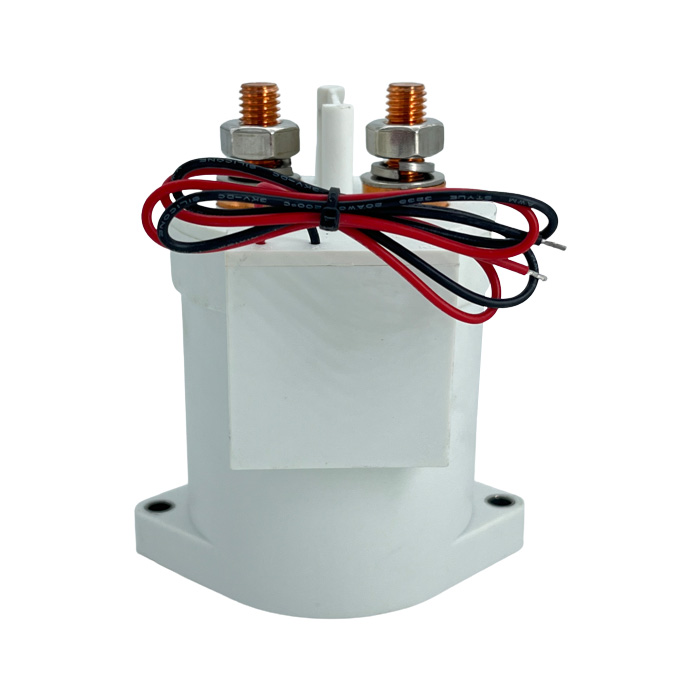

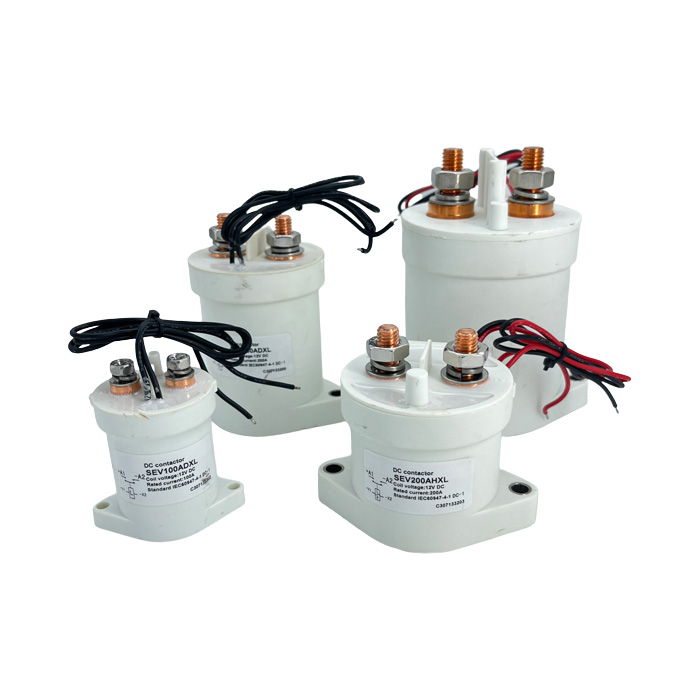

DC Contactors for High-Voltage Switching

Xinkong is a professional DC Contactors for High-Voltage Switching manufacturer and supplier with many years of experience. DC Contactors for High-Voltage Switching can meet many applications, If you are interested in our quality services, you can consult us now, and we will get back to you promptly.Xinkong DC Contactor - a compact and lightweight solution with exceptional energy efficiency, low heat generation, and an extended lifespan. Designed to meet your specific needs, this high-performance device is perfect for various applications that require reliable and precise control. The DC Contactor boasts a small size and lightweight design, ensuring convenience and ease of installation in any setup. Trust in its exceptional performance and enjoy its long-lasting durability. Don't miss out on this essential component - get your DC Contactor today.

Send Inquiry

Product Description

Xinkong is a DC Contactors for High-Voltage Switching manufacturer and supplier, well-known for quality service. Wenzhou Xinkong Import & Export Co., Ltd. is an innovative enterprise integrating scientific research, production and sales. The company's sales network covers many countries and regions such as Europe and Southeast Asia, and its product quality and service are well received by customers. You can rest assured to buy DC Contactors for High-Voltage Switching from us.

Contact form	1 NO(SPST-NO) or 1NC(SPST-NC)
Coil Rated voltage(DC V)	6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,220V etc.
Contact voltage(DC V)	5-1000V
Contact circuit rated load current (DC-1)	150A
Typical voltage drop across contacts per 100A	≯80mV
the cooling pull-in voltage at (20±5)℃ (V)	≯70%
the cooling drop-out voltage at (20±5)℃(V)	≯35%,≮5%
Working voltage range of 40 degrees celsius coil	0.8-1.2Us
Drop-out time(n/o contacts to open)	20ms
Pull-in time (n/o contacts to close)	10ms
connect the maximum contact bounce time	10ms
Disconnect the maximum contact bounce time	7ms
Insulation Resistance	100MΩ
Electric strength to resist	50Hz/60Hz 2200VAC 1minute
Typical fault currents which can be ruptured	800A/5ms at 48V DC
Coil power (W)	4-10
Temperature rise of coil (K)	≤35
Temperature rise on outgoing terminal (K)	≤65
Electric life	20000 times
Mechanical life	300 thousand times
Work specification	Continuous
Contact material	Alloy
Inrush time(Max)	130ms
Maximum switching current	1000A 320VDC（More than 1 times）
Maximum switching power	320kW
Load terminal type	M5 Rose
Coil terminal type	0.3 square silicone wire, 390mm long
Auxiliary contact rated load (choose)	3A/30VDC
Testing organization certification	CCC,CE,FCC,RoHS
